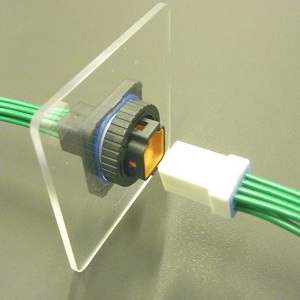

Product Photo
Schematic
Series Description
This is a panel lock type 2.0 mm pitch wire-to-wire connector with water ingress protection with an IPX7 rating per IEC 60529 (grade 7 per JIS C 0920), suitable for use for the place of which waterproof is required.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 2mm |
| Current Rating | 3 A (AWG #22) |
| Voltage Rating | 100V |
| Array (Insertion part) | Dual-row |
| Connection variations (Compatibility | Wire-to-board type available |
| Lock | Inner lock (Secure lock), Center lock (Secure lock) |
| Panel mounting | Panel lock |
| Standard | Grade 7 per JIS C 0920, UL |
| Waterproof | Waterproof |
| Wiring type | Crimp style |
