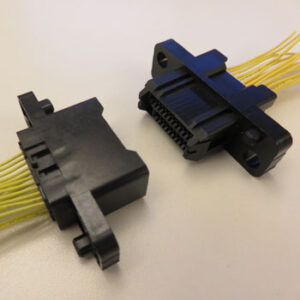

Product Photo

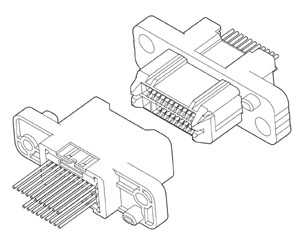

Schematic
Series Description
This is a dual-row, signal drawer connector for unit connection. It features a mechanism to absorb misalignment between units and is ideal for locations with few insertion and withdrawal cycles.
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
| Pitch | 1.5mm |
| Current Rating | 1 A (Signal circuit,AWG #26) |
| Voltage Rating | 50V (信号部) |
| Array (Insertion part) | Dual-row |
| Mating assist | Drawer connector, Absorbing PC board misalignment type |
| Panel mounting | Screw fastening |
| Standard | UL, TÜV |
| Wiring type | Crimp style |
